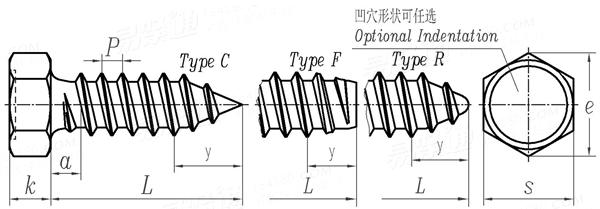

| P
|
螺距 |
| a
|
最大值 |
| s
|
最大值 |
| 最小值 |
| e
|
最小值 |
| k
|
最大值 |
| 最小值 |
| r
|
最小值 |
| y
|
参考 |
C型 |
| F型 |
| R型 |
|
| 0.8 |
1.1 |
1.3 |
1.4 |
1.6 |
1.8 |
1.8 |
2.1 |
2.1 |
| 0.8 |
1.1 |
1.3 |
1.4 |
1.6 |
1.8 |
1.8 |
2.1 |
2.1 |
| 3.2 |
5 |
5.5 |
7 |
8 |
8 |
10 |
13 |
16 |
| 3.02 |
4.82 |
5.32 |
6.78 |
7.78 |
7.78 |
9.78 |
12.73 |
15.73 |
| 3.38 |
5.4 |
5.96 |
7.59 |
8.71 |
8.71 |
10.95 |
14.26 |
17.62 |
| 1.6 |
2.3 |
2.6 |
3 |
3.8 |
4.1 |
4.7 |
6 |
7.5 |
| 1.3 |
2 |
2.3 |
2.6 |
3.3 |
3.6 |
4.1 |
5.2 |
6.5 |
| 0.10 |
0.10 |
0.10 |
0.20 |
0.20 |
0.25 |
0.25 |
0.40 |
0.40 |
| 2 |
2.6 |
3.2 |
3.7 |
4.3 |
5 |
6 |
7.5 |
8 |
| 1.6 |
2.1 |
2.5 |
2.8 |
3.2 |
3.6 |
3.6 |
4.2 |
4.2 |
| / |
/ |
2.7 |
3.2 |
3.6 |
4.3 |
5 |
6.3 |
/ |
|
